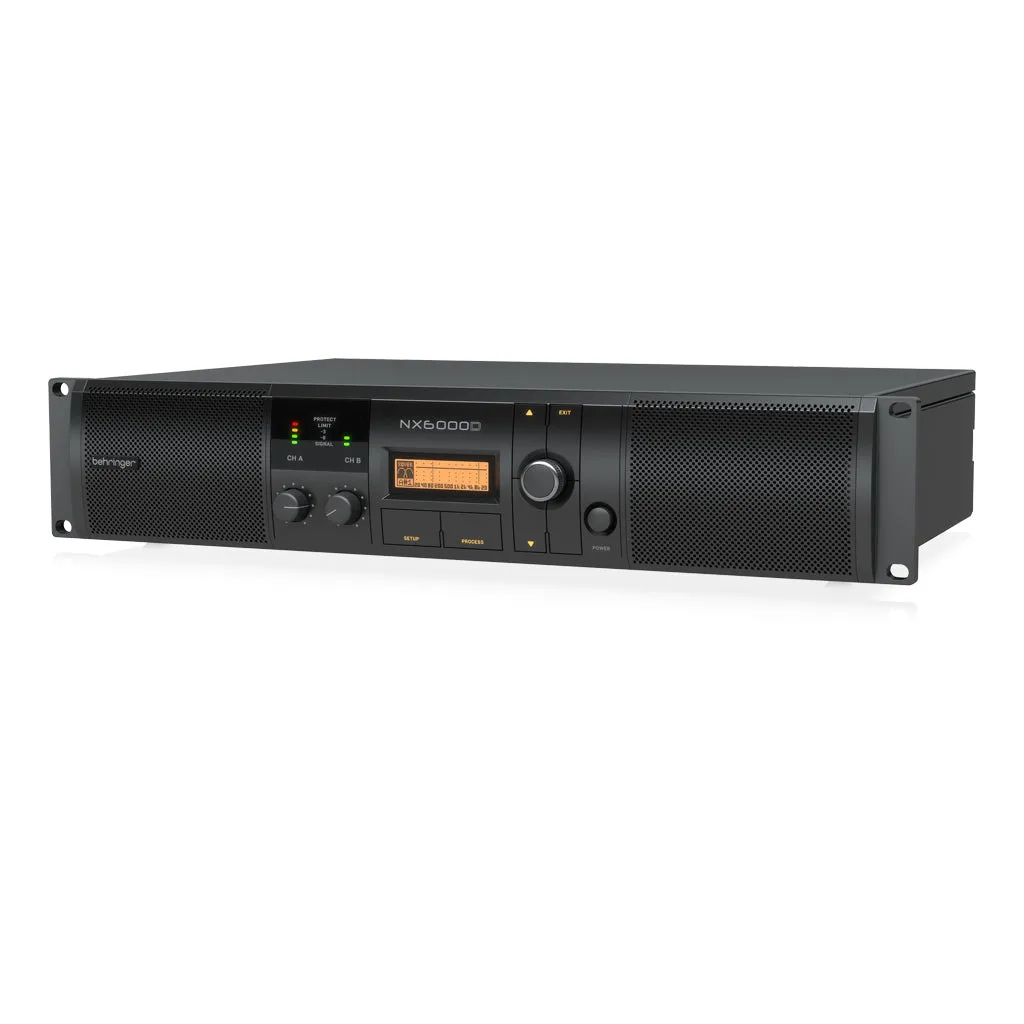

Ultra-Lightweight 6000W Class-D Power Amplifier with DSP Control and SmartSense Loudspeaker Impedance Compensation

The NX6000D power amplifier packs 6000 Watts (2 x 3000 Watts @ 4 Ohms; 2 x 1600 Watts @ 8 Ohms) into exceptionally lightweight (13.2 lbs / 6.0 kg) and rack-mountable packages. Plus, the built-in DSP and 24-bit/ 96 kHz converters ensure the ultimate signal integrity with an extremely broad dynamic range. And because the NX6000D is so much more efficient than conventional designs, it runs cooler and doesn’t require the massive heat sinks and heavy toroid transformers typically associated with its conventional counterparts. Thanks to our “Zero-Attack” limiters that offer maximum output level with exceptionally-reliable overload protection and SmartSense Loudspeaker impedance compensation, which provides fully linear frequency response at any speaker load impedance, you can run the NX6000D full-out for hours on-end. Our revolutionary high-density Class-D technology, combined with an ultra-efficient, switch-mode power supply ensure this feather-light powerhouse will drive your rig effortlessly for many years to come.

Features

• Delivers 2 x 3000 Watts into 4 Ohms, 2 x 1600 Watts into 8 Ohms and weighs less than 13.2 lbs / 6.0 kg
• Ultimate reliability through revolutionary cool-running High-Density Class-D technology with near-zero thermal buildup
• Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
• High-performance DSP and 24-bit/96 kHz converters deliver ultimate signal integrity and extreme dynamic range
• DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings
• SmartSense Loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance

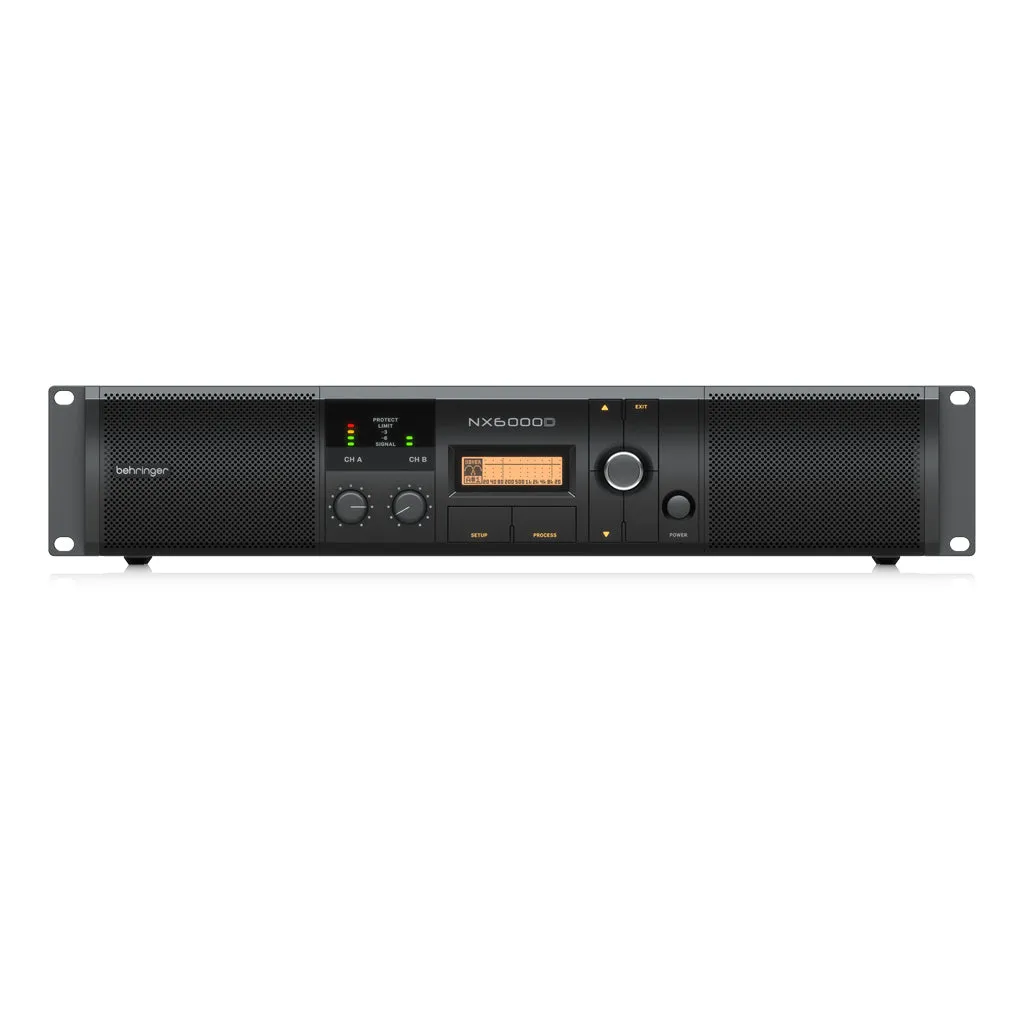

• Front panel LCD display enables setup and adjustment without PC
• Can be set up, controlled and monitored via rear panel USB connector. Powerful remote software downloadable at behringer.com
• Zero-Attack limiters offer maximum output level with reliable overload protection
• Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
• Detented gain controls for precise level setting
• Precise 4-segment Signal and Limit LEDs to monitor performance
• XLR and 1/4'' TRS combination input connectors for compatibility with any source

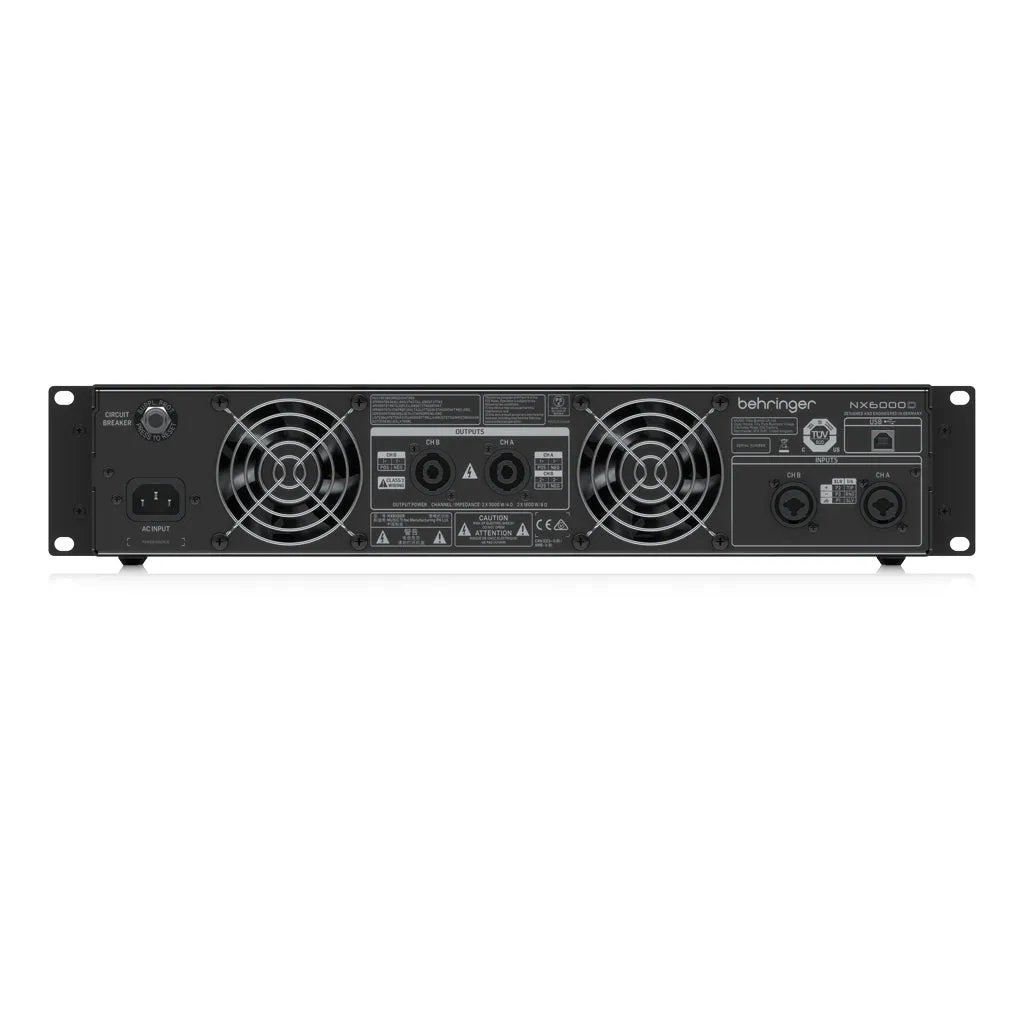

• Professional twist-lock speaker connectors for ultimate reliability
• Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
• Back-to-front ventilation system prevents thermal buildup for reliable operation
