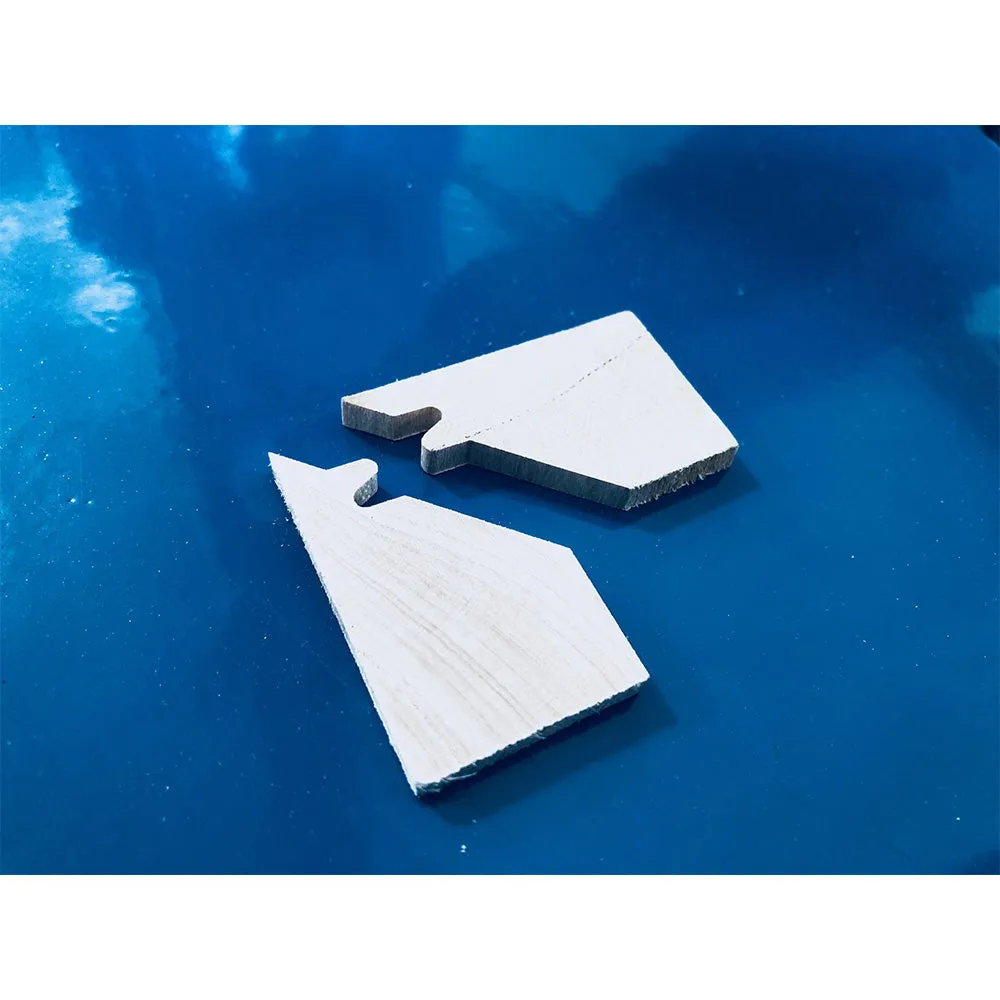

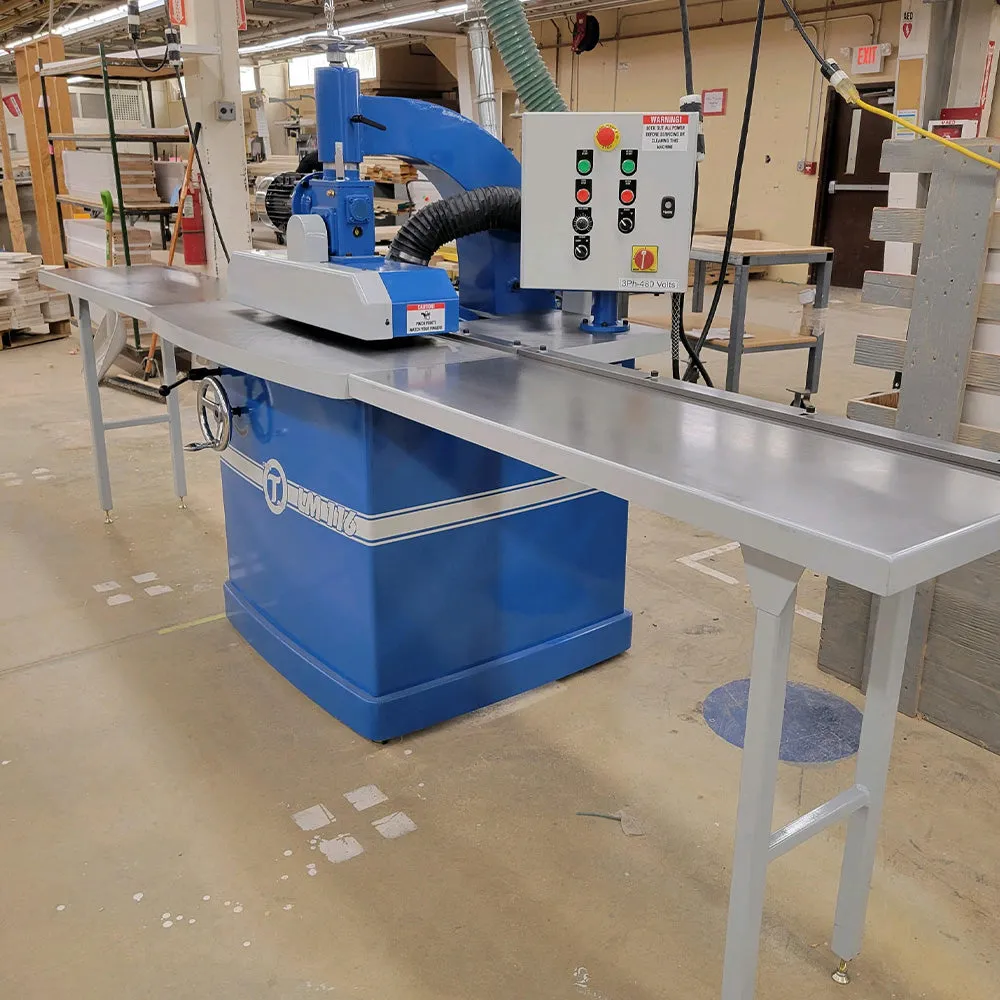

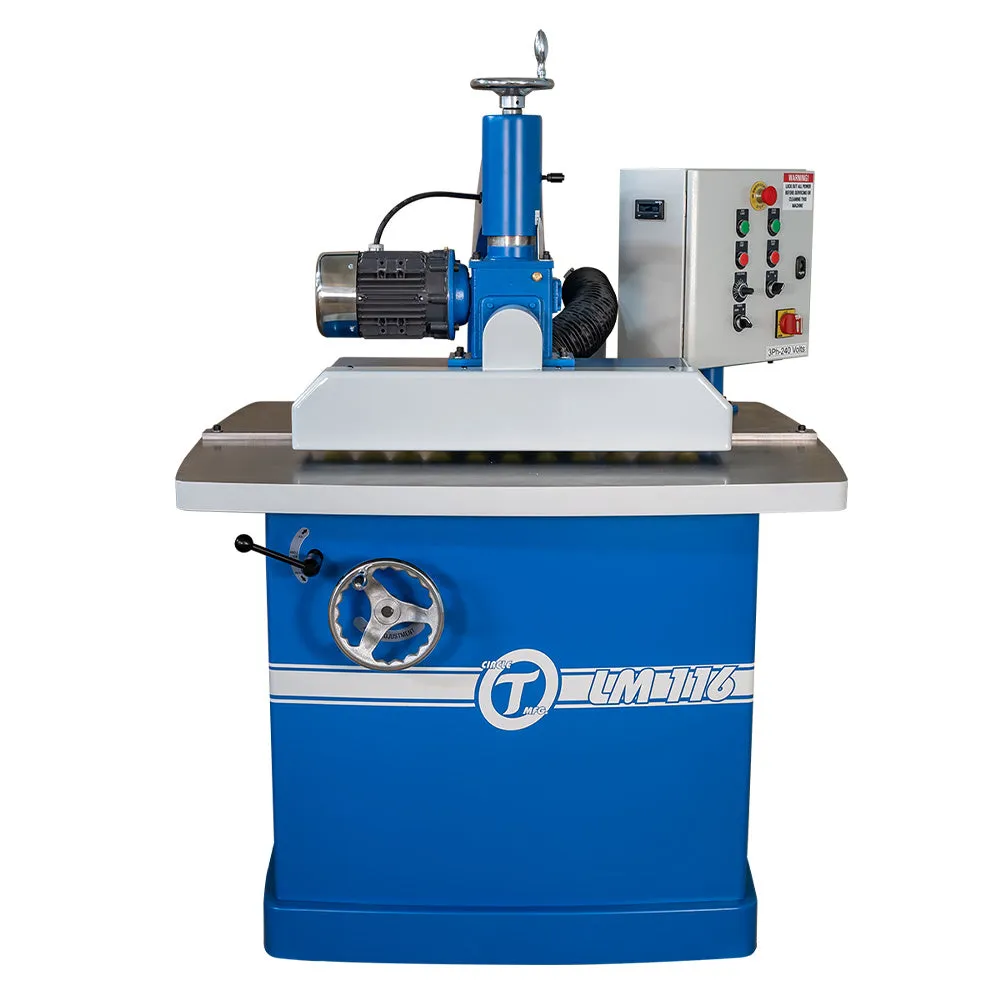

The Easy Lock Miter Machine is uniquely designed to produce an extremely precise and easy lock miter joint. Many customers use Circle T machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!

This machine allows you to do 1/2" to 1" material with no changeout. A & B profiles can be cut with the exclusive pneumatic Power Tilt Spindle. Capable of machining angles from 90 – 30° (Finish Angle). You'll also see massive time reductions in setup, gluing, clamping, and sanding!

[TABS]

Features

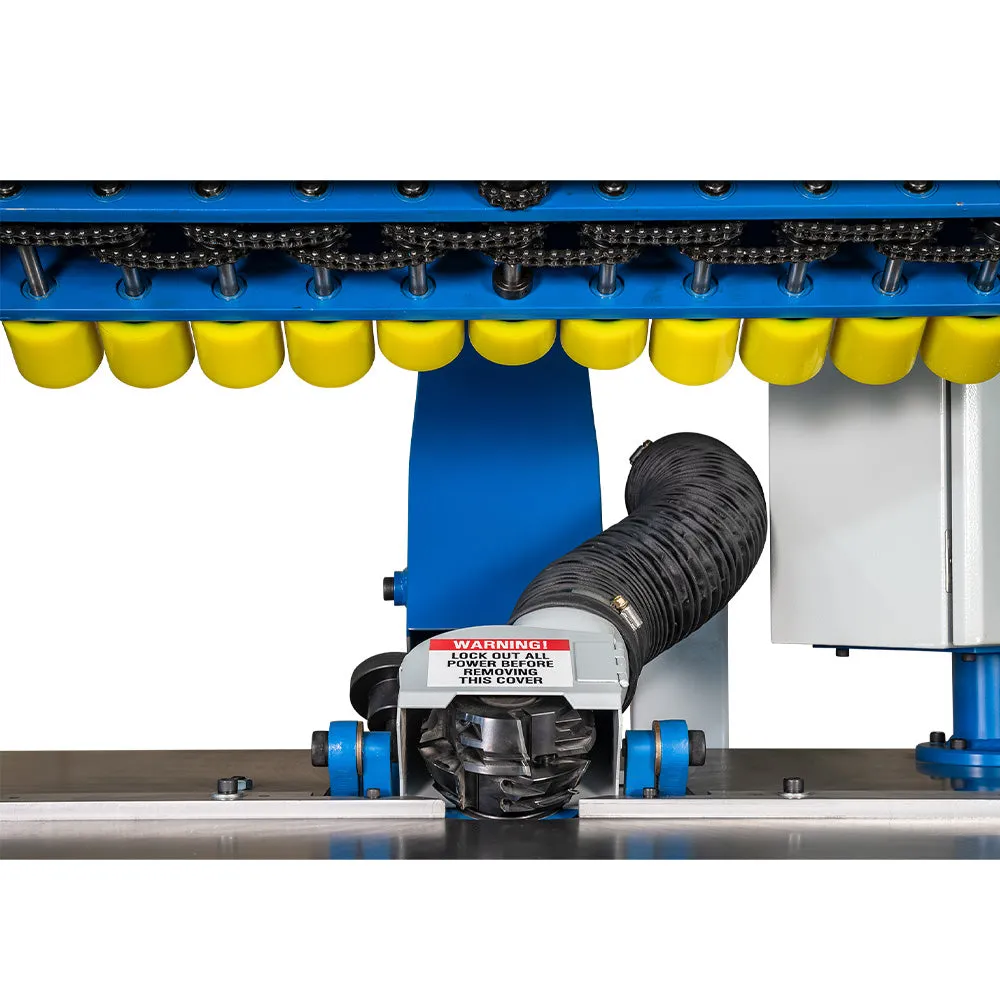

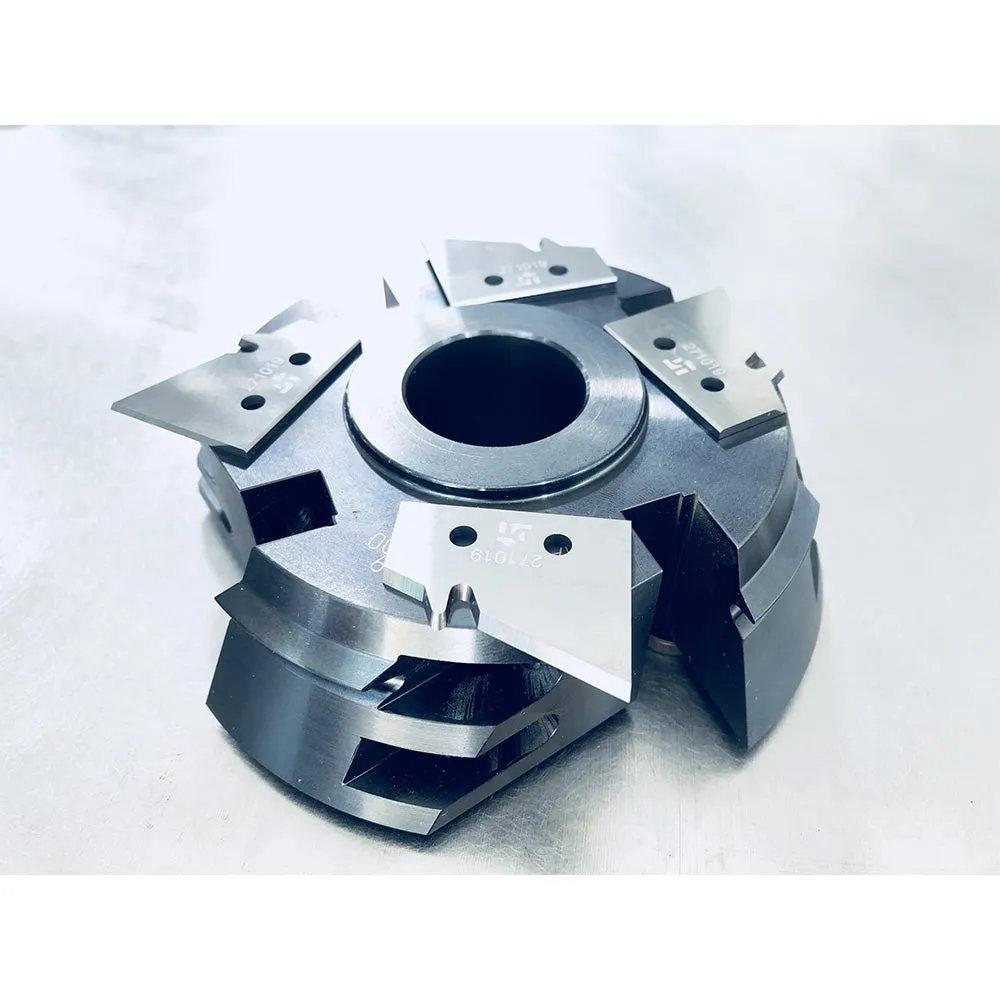

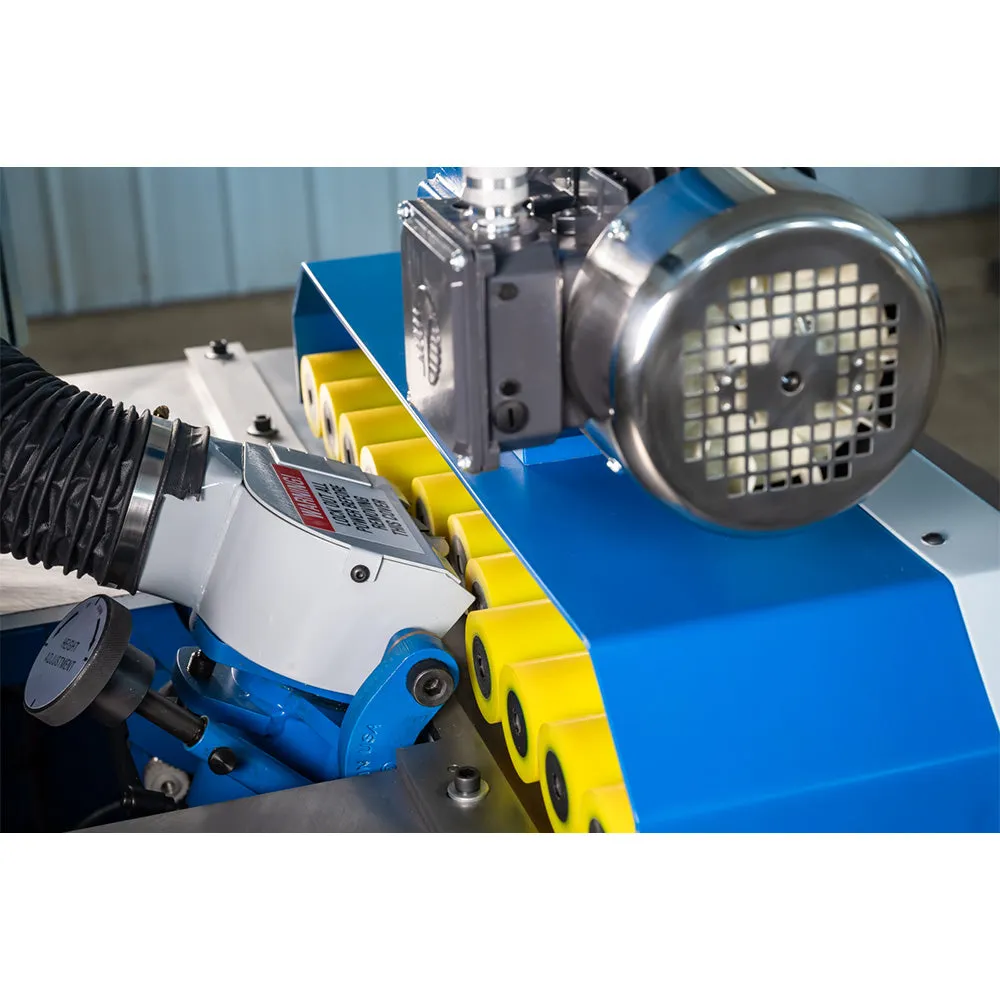

• A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle
• No more downtime setting up and changing out your shaper
• No more running pieces on their side

Specs

Max. Material Thickness: 1″
Min. Material Thickness: 1/2″
Min. Material Width: 1-1/4″
Min. Material Width (2-Sided): 2″
Min. Material Length: 12″
Spindle Motor: 5hp
Feed Motor: 0.5hp
Spindle Diameter: 1-1/4″
Spindle Speed: 8,200 RPM
Dust Collection Requirements: 670 CFM, 4″ Outlet
Pneumatic Requirements: 100 PSI .5 CFM
Table Size: 40″ x 47″
Footprint: 42″L x 54″W x 60″H
Shipping Dimensions (L x W x H): 57" x 48″x 79″
Shipping weight: 1,400 lbs.
Net weight: 1,250 lbs.
