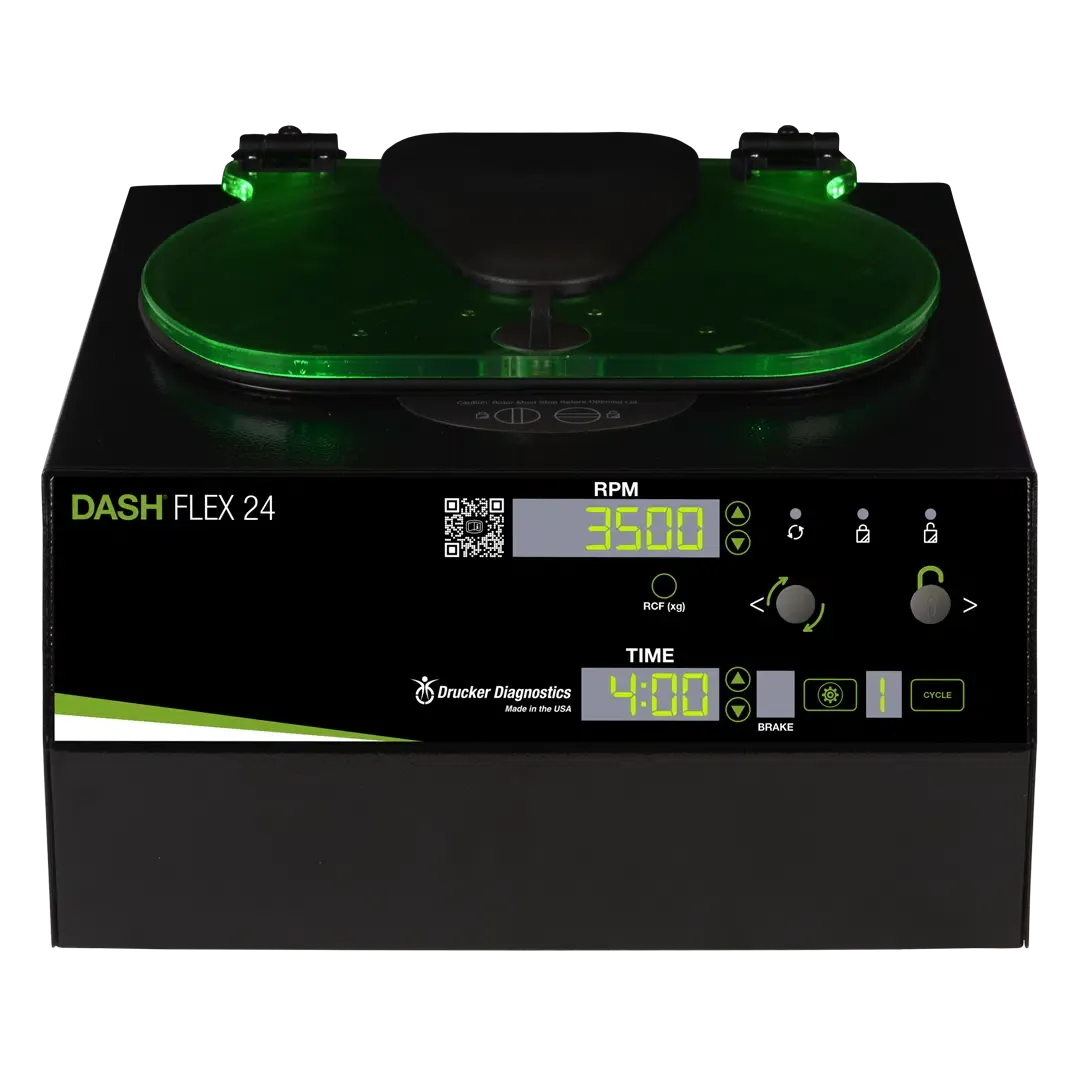

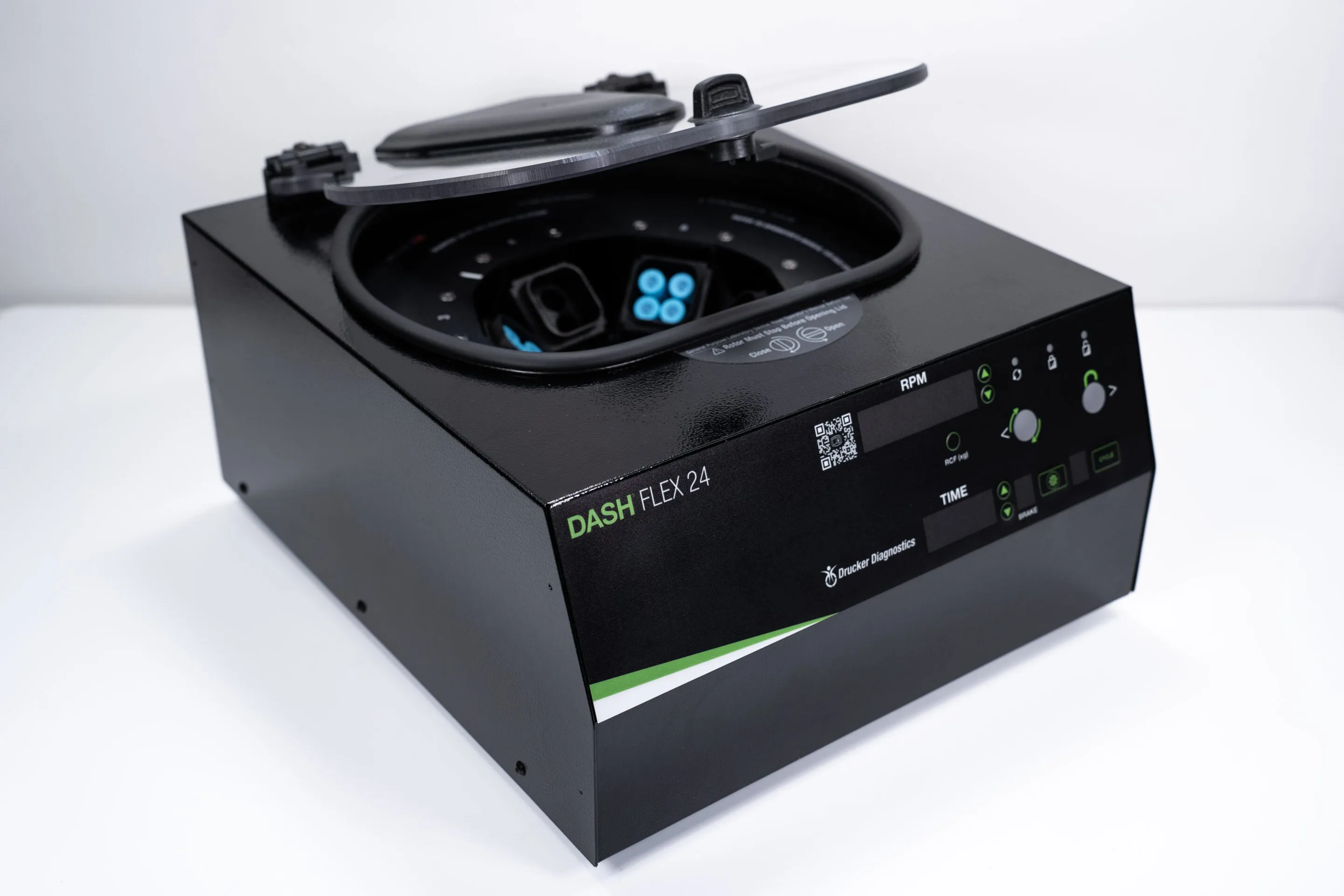

The DASH Flex 24 centrifuge is designed for large-scale STAT labs with high throughput. Its innovative LED lid lighting prevents overlooked samples and streamlines turnaround times, indicating status as ready, running, or completed. The digital display shows a countdown timer for precise monitoring. With a compact footprint, it integrates into accessioning areas, and its 24-tube capacity ensures swift loading. Intuitive controls allow for quick parameter adjustments, or users can choose from three STAT presets, program up to 10 settings, or lock a single cycle for consistent results.
Features
- Capacity – 24 (up to 16 x 100 mm or 10 mL), 12 (up to 16 x 125 mm or 15 mL), 6 (up to 50 mL)
- Digital Display – Clearly see your custom parameters and the time left in each cycle
- Fully Programmable – Easily set and save up to 10 custom time, RPM, and g-force settings
- LED Lid Lighting – Lid lights flash at the end of each cycle and continue flashing until the lid is opened.
- Brushless DC Motor – Years of operation with no routine maintenance

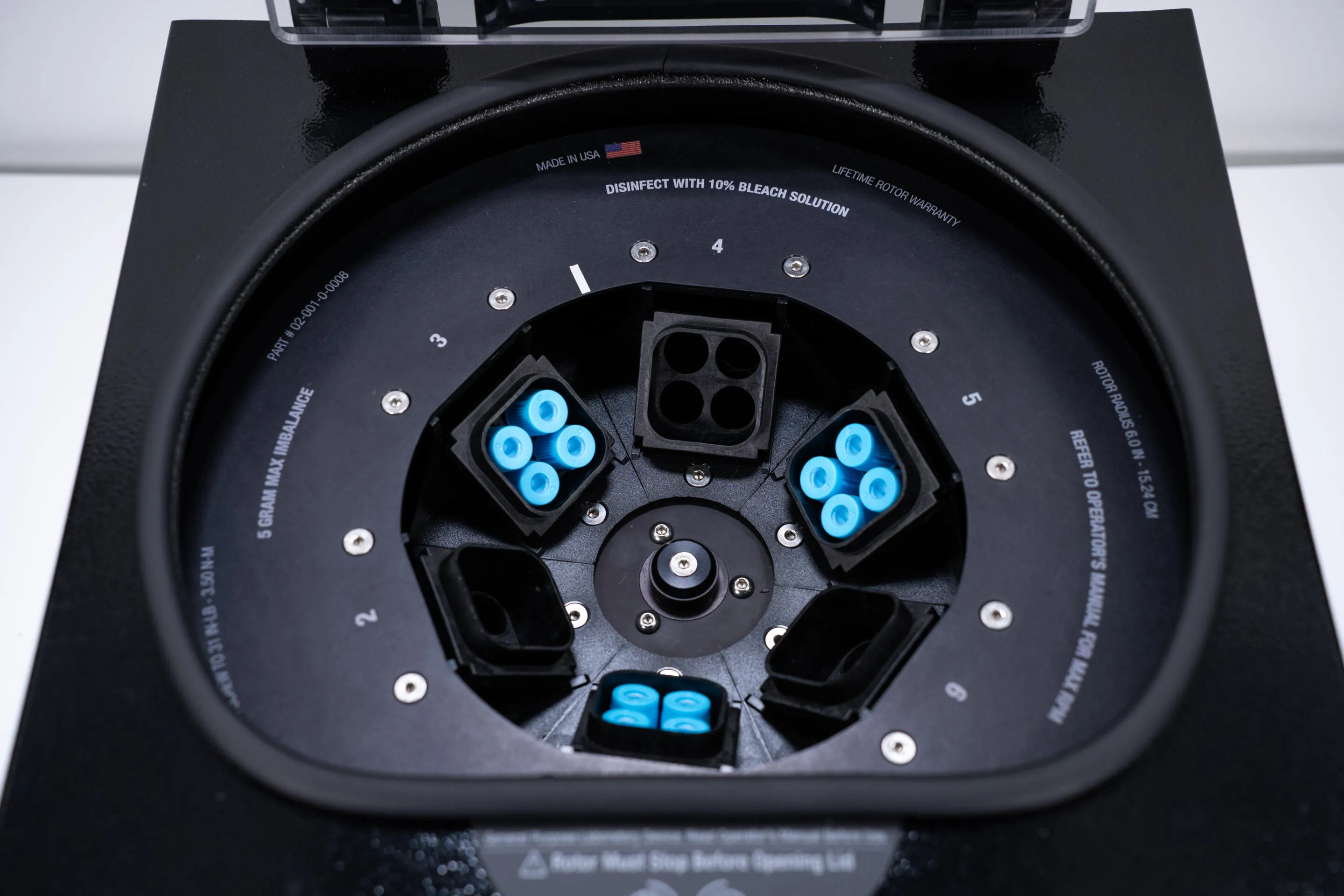

- 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl – Provides maximum safety and durability
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specifications
- Dimensions (W x D x H): 15 x 17 x 9 in (38.1 x 43.2 x 22.9 cm)
- Weight – 39 lbs (17 kg)
- Max. Acceleration Time – 45 Seconds
- Max. Deceleration Time – 40 Seconds
- Factory Setting Range – 1 to 30 Minutes (± 1%)
- Voltage – 95 to 253 VAC
- Frequency – 50/60 Hz
- Max. Power Requirements – 280 Watts
Preset Cycles
Preset 1: 5 minutes / 4300 RPM / 3150 xg
Preset 2: 6 minutes / 4300 RPM / 3150 xg
Preset 3: 7 minutes / 3500 RPM / 2100 xg
Warranty
2 years (lifetime on rotor)
