COMMON APPLICATIONS
Honda's V-Twin range of engines are the cream of the crop, powering pressure washers, water pumps and commercial lawncare equipment.
COMMON APPLICATIONS - Honda's V-Twin range of engines are the cream of the crop, powering Grain Augers, Ride-On Lawnmowers, and Commercial Lawn and Garden Equipment across New Zealand. The V-Twin range can also be found used for High Output Pumps, Pressure Washers, Generators and other Agricultural Equipment as well as many different applications. If it's something more demanding that you need power for, the V-Twin range can also be used in the Forestry and Construction/Industrial industries
FUEL EFFICIENT OPERATION
The fuel economy of the V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.
Featuring a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation.
There's also a rev limiter to protect against damage from over-revving. A hemispherical combustion chamber delivers rapid combustion, and it features Pressure fed crankshaft bearings.
Add a two-barrel inner-vent carburettor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.
PROVEN RELIABILITY
The GX690's high capacity pump facilitates consistent oil delivery, and a handy oil alert so there is no risk of running dry and doing damage to the engine. There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling, perfect when operating over long periods of time.
Get the smoothest performance via an integrated cylinder and head as well as racing inspired forged steel connecting rods. The V-Twin range is exceptionally quiet thanks to a high capacity 36 blade cooling fan. Featuring aluminium push rods with steel clips, enjoy lighter weight, less vibration and quiet operation. The range is easy to use and maintain with conveniently located controls, with several configurations available, based on user preference. Better yet, it has an automotive-type spin-on oil filter. When there’s no time to waste, you’ll enjoy easy starting thanks
3 YEAR WARRANTY
Honda's leading range of power equipment comes with leading warranty periods. Our range of GX engines carrying up to a 3 year warranty*.
With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.
NOTE - You need to select a muffler as these are included free

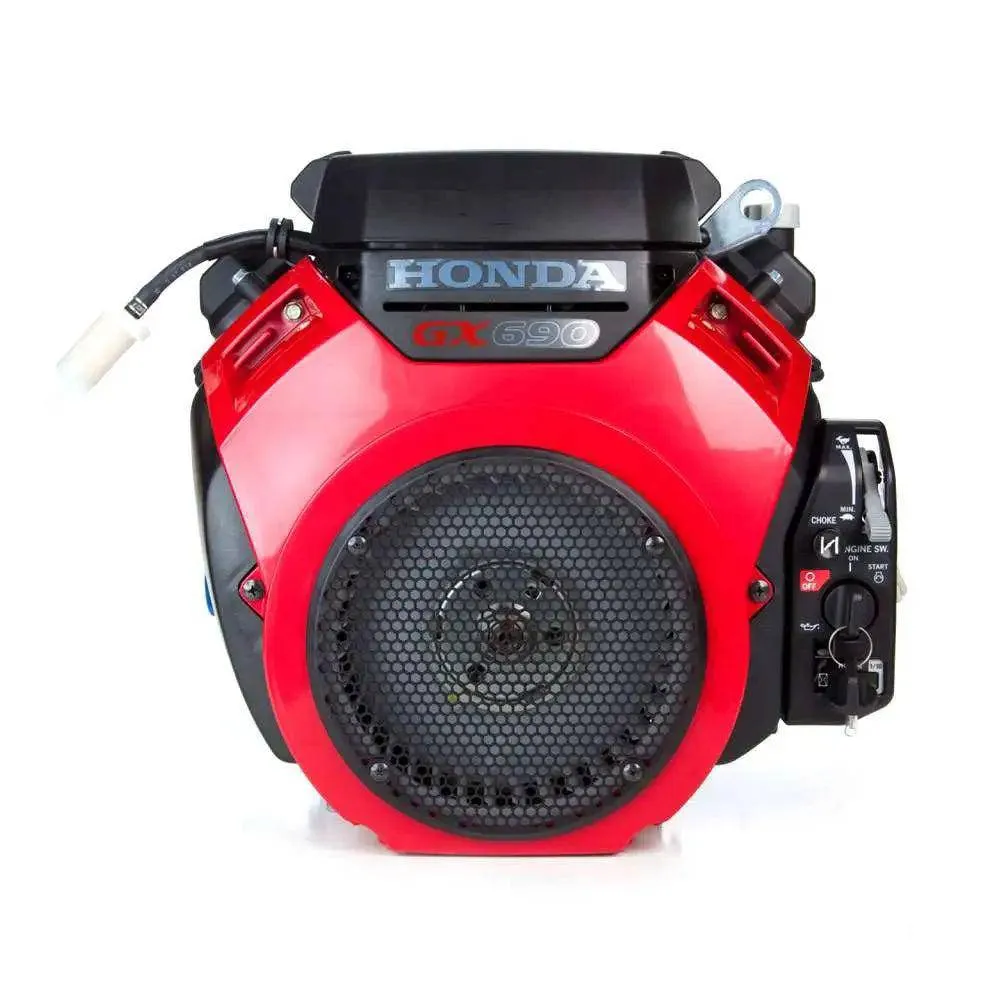

| Model | GX690 |
| Type | Air cooled 4-stroke OHV petrol engine, 90° V-twin design, horizontal shaft |
| Bore & Stroke | 2 / 78 x 72mm |
| Displacement | 688cm3 |
| Compression Ratio | 9.3:1 |
| Net Power | 16.5 kW (22.1 HP) / 3600rpm |
| Continuous Rated Power | 11.5 kW (15.4 HP) / 3000 rpm 13.0 kW (17.4 HP) / 3600rpm |
| Max Net Torque | 48.3 Nm / 4.93 kgfm / 2500rpm |
| Ignition System | Digital CDI with variable ignition timing |
| Starting System | Electric starter |
| Fuel Consumption at Rated Power | 6.7 L/hr - 3600rpm |
| Lubrication System | Full-pressure |
| Recommended Fuel | Unleaded |
| Oil Capacity | Without oil filter replacement: 1.5L With oil filter replacement: 1.7L |
| Dimensions | 429 x 410 x 438 mm (T-Type) |
| Dry Weight | 44.6kg |
