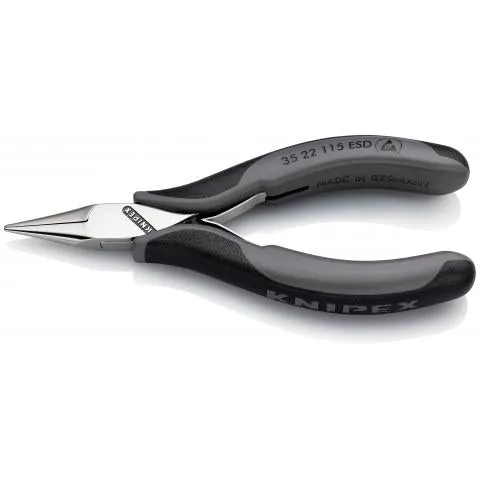

35 22 115 ESD Electronics Pliers ESD
- Precision pliers for fine assembly work, e g. in electronics and fine mechanics
- For gripping, holding and bending
- Electrically discharging handles - dissipative
- Sturdy, zero backlash box joint
- Smooth ground gripping surfaces
- Edges carefully deburred
- Low-friction double spring for gentle and even opening
- The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Handles with two-colour multi-component grips black/grey
- Half-round jaws
- Ball bearing chrome steel, oil hardened
Small, slender with ESD protection: gripping pliers for sensitive electronics
Short, smooth and good: 115 mm long for plenty of freedom of movement even where space is restricted
The Knipex 35 22 115 ESD electronics pliers are a compact tool which can also be used to work well even in poorly accessible areas: ideal for electronic equipment, printed circuit boards and precision constructions, such as in measuring equipment or delicate apparatus. Space is usually fairly tight here.
With a length of just 115 mm and their slim, half round head, these electronics pliers from Knipex are the ideal tool for the delicate gripping, holding and bending of sensitive components. The gripping surfaces are smooth ground to protect sensitive surfaces. The tips are rounded at the front.
Smooth operating and accurate, with box joint design and double spring
The smaller and more sensitive the component, the greater the challenges placed on gripping pliers. The accurate, well-measured transmission of manual force to the component is vital. The mechanics of the Knipex 35 22 115 ESD are exceptionally finely adjusted. The box joint is solid and smooth operating. The inner handle is guided on both sides by the outer handle. This ensures precise running without any tilting effect. The low friction double spring supports the gentle opening of the pliers.
ESD protection from uncontrolled electrostatic discharge; safety rust protection
Sudden discharge resulting from electrostatic charging differences is particularly feared in electronics. With the Knipex 35 22 115 ESD electronics pliers, the electrostatic energy is discharged in a constant, controlled manner via the conductive handles. This avoids high potential differences between component and tool. There is no sudden discharge. The rust protection is also safe for sensitive electronic components. There is no chrome-plating, therefore no pieces of chrome can peel off and fall onto printed circuit boards. The mirror polish in conjunction with a fine oil film provides perfectly adequate corrosion protection for the pliers during workshop use if the oil film is replaced occasionally.
