Airboat Trim Tab Kits
12-Gauge Blades / 12-Volt Actuators

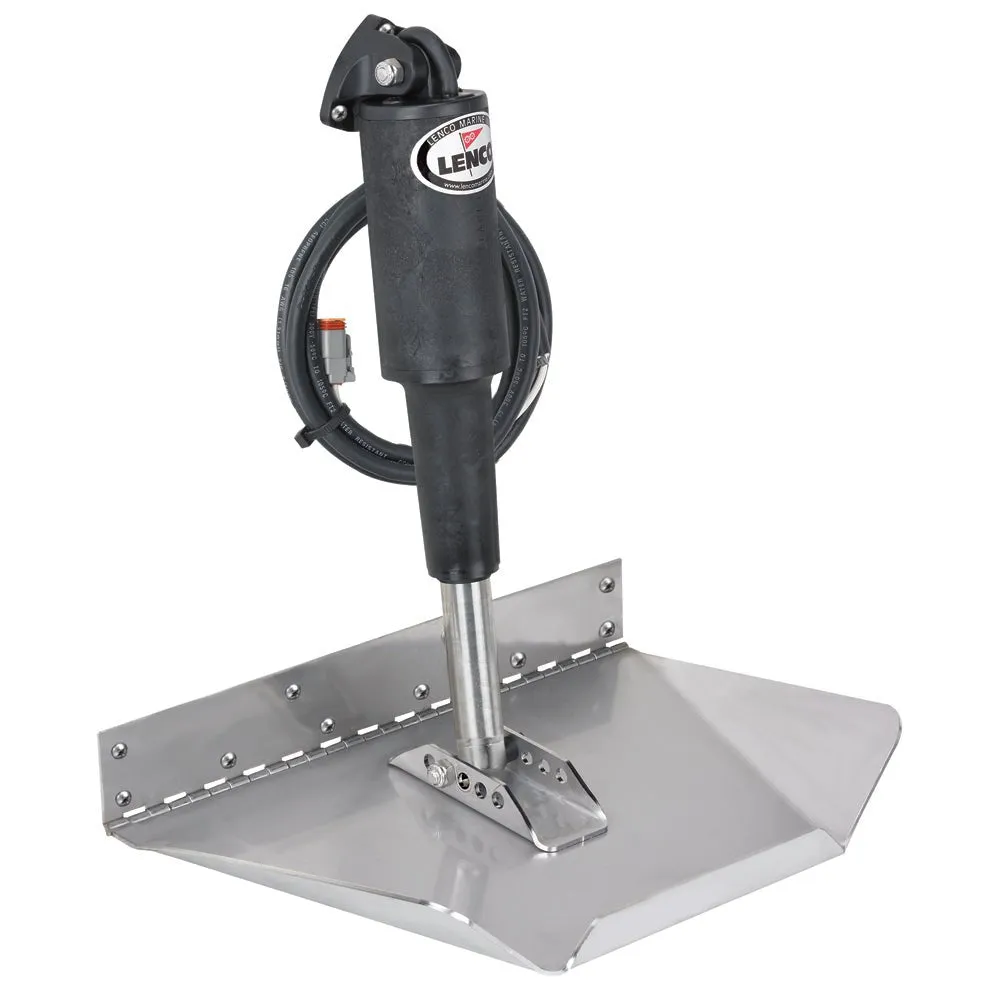

Lenco Airboat Electric Trim Tab Kit was designed exclusively for airboats. Engineered with a short Extreme Duty Actuator and a unique mount that allows maximum plate movement and safe upward position when running in shallow water and on land. This system eliminates porposing and helps to create a smoother ride.

Blade is 12 gauge - 304 SS with 5/8" flared trailing edge and 1" Custom Hinge with 1/8" diameter hinge pin. Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections.

Kit Contents

• 1 each of 12-gauge 304 stainless steel trim tab plane

• 1 each of #15055-001 XD actuator with 6' lead and Deutsch plug

• 1 each of #30133-002 14' actuator extension wiring harness

• 1 each of #15085-001 (116) upper mounting bracket with gland seal

• 1 each of the Lenco owner's/installation manual

• All necessary stainless steel mounting hardware

• Trim Tab Kit: Airboat

• Blades: 12 Gauge Stainless Steel

• Finish: Smooth

• Switch Kit: Sold Separately

• Class: Fuel Efficient

• Compliance: CE Certified

• Compatibility: Any Boat

• Made in: Stuart, Florida U.S.A.

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

  This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

  Specifications:

  • Actuator Type: Electro-Mechanical
  • Construction: Stainless Steel
  • Box Dimensions: 7"H x 13"W x 25"L WT: 11.3 lbs
  • UPC: 874847006637
